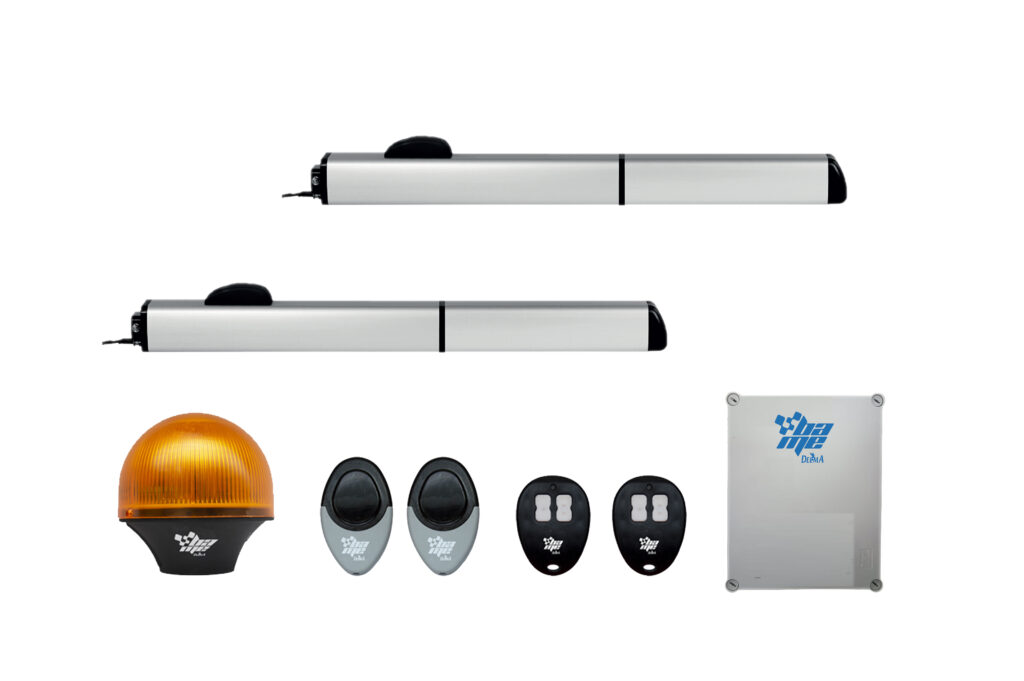

HYDRAULIC GEAR MOTOR IRREVERSIBLE OR REVERSIBLE 230V FOR INDUSTRIAL AND CONDOMINIUM USES

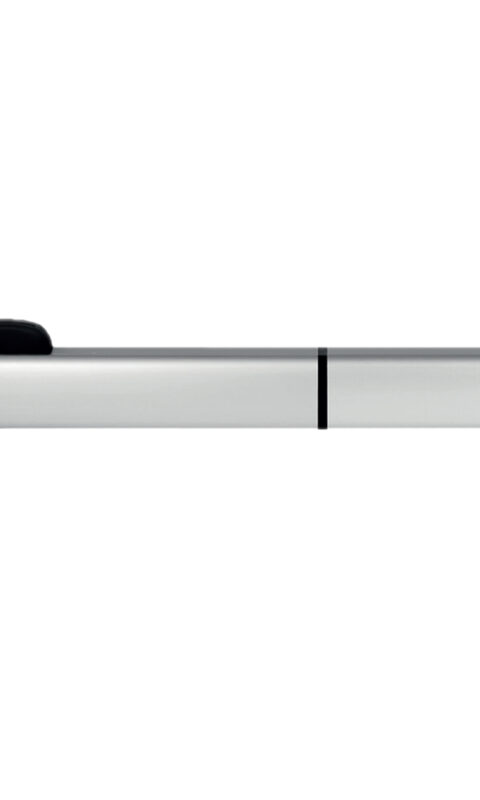

Hydraulic operator for swing gates up to 5 metres in length and up to 500 kg in weight. It is designed for residential, industrial or multiresidence application. The release sytem is positioned on the top, to provide an easy unlock also in most difficult installations. The Electric motor , complete in oil-bath, ensure a very intensive and silent use, while the aluminium body, which cover the reductor and iron chromed rod, makes the operator compact and sturdy.
| LEOPARD – R | LEOPARD – BAC | |
| Power Supply | 230V – 50/60 HZ | 230V – 50/60 HZ |
| Motor power supply | 230V – 50/60 HZ | 230V – 50/60 HZ |
| Absorbed power | 350W | 350W |
| Absorbed current | 1,9A | 1,9A |
| Stroke | 390mm | 390mm |
| Operating temperature | -20°C / +70°C | -20°C / +70°C |
| Max leaf lenght | 5,0 mt | 5,0 mt |
| Max leaf weight | 500 KG | 500 KG |
| Max Thrust | 780 N | 780 N |
| pump capacity | 1L\minno | 1L\minno |
| door lock | NO – REVERSIBLE | OPEN \ CLOSE |
| ip grade | IP 55 | IP 55 |
| Usage | INTENSIVE | INTENSIVE |
| Operator weight | 10 Kg | 10 Kg |
