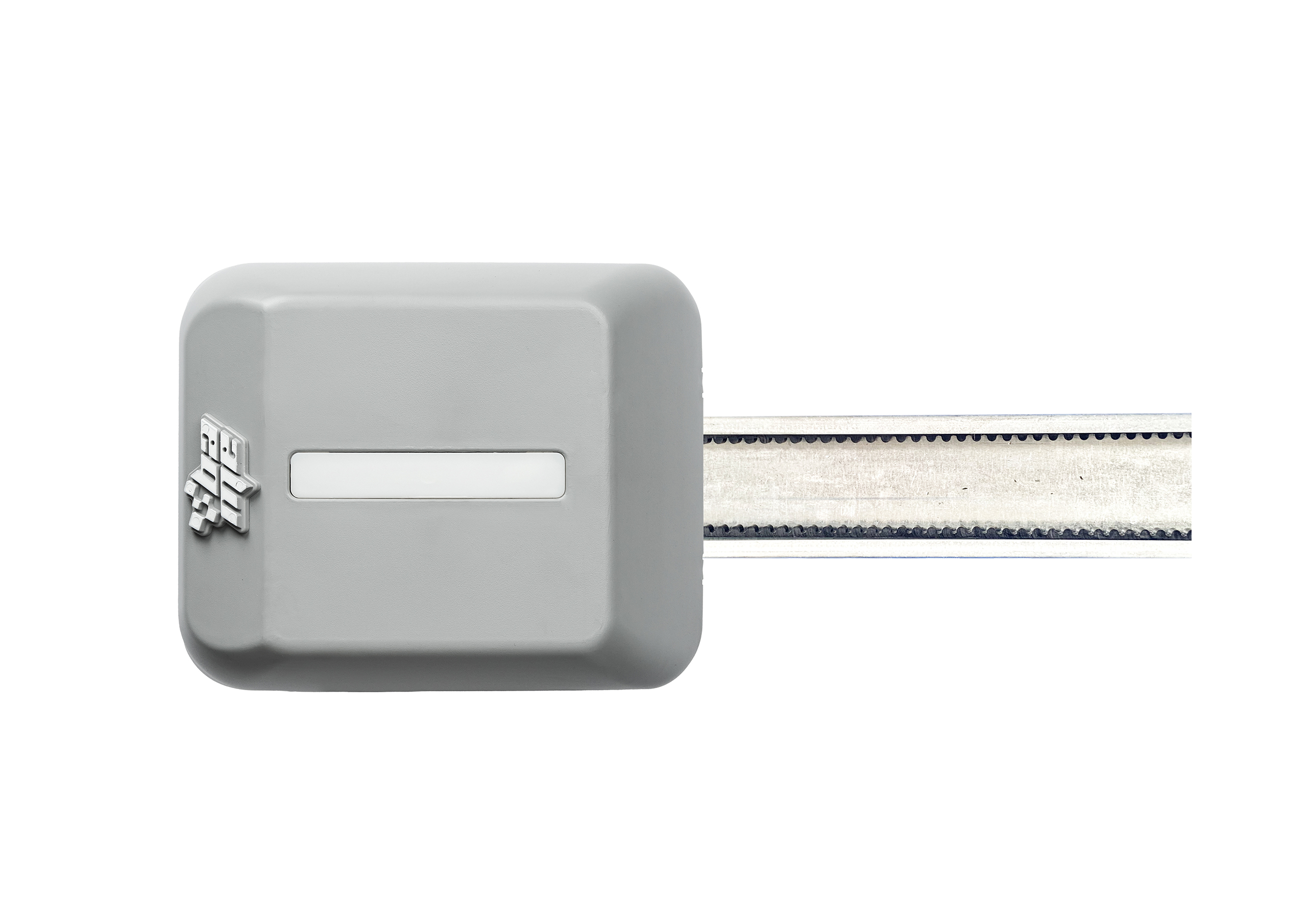

Electromechanical 24V operator with BELT drive for sectional and overleaf residential doors with counterweights or springs.
Electromechanical 24V operator with BELT drive for sectional and overleaf residential doors with counterweights or springs.
Operators 24Vcc with encoder and belt drive suitable for sectional and overleaf doors, residential use. Guides and accessories are treated with galvanisation process and the pinion is made in sintered steel for longevity. Maximum doors height 2,80 mt.
| SUPERCOLIBRI’ | SUPERCOLIBRI’ PLUS | |
| Power Supply | 230V – 50/60 HZ | 230V – 50/60 HZ |
| Motor power supply | 24 VdC | 24 VdC |
| Absorbed power | 90W | 120W |
| Absorbed current | 2,0 A | 2,0 A |
| Stroke | 2,8 MT | 2,8 MT |
| Max Thrust | 1000 N | 1200 N |
| Cycles per day | 400 | 400 |
| Usage | INTENSIVE | INTENSIVE |
| Drive | BELT | BELT |
