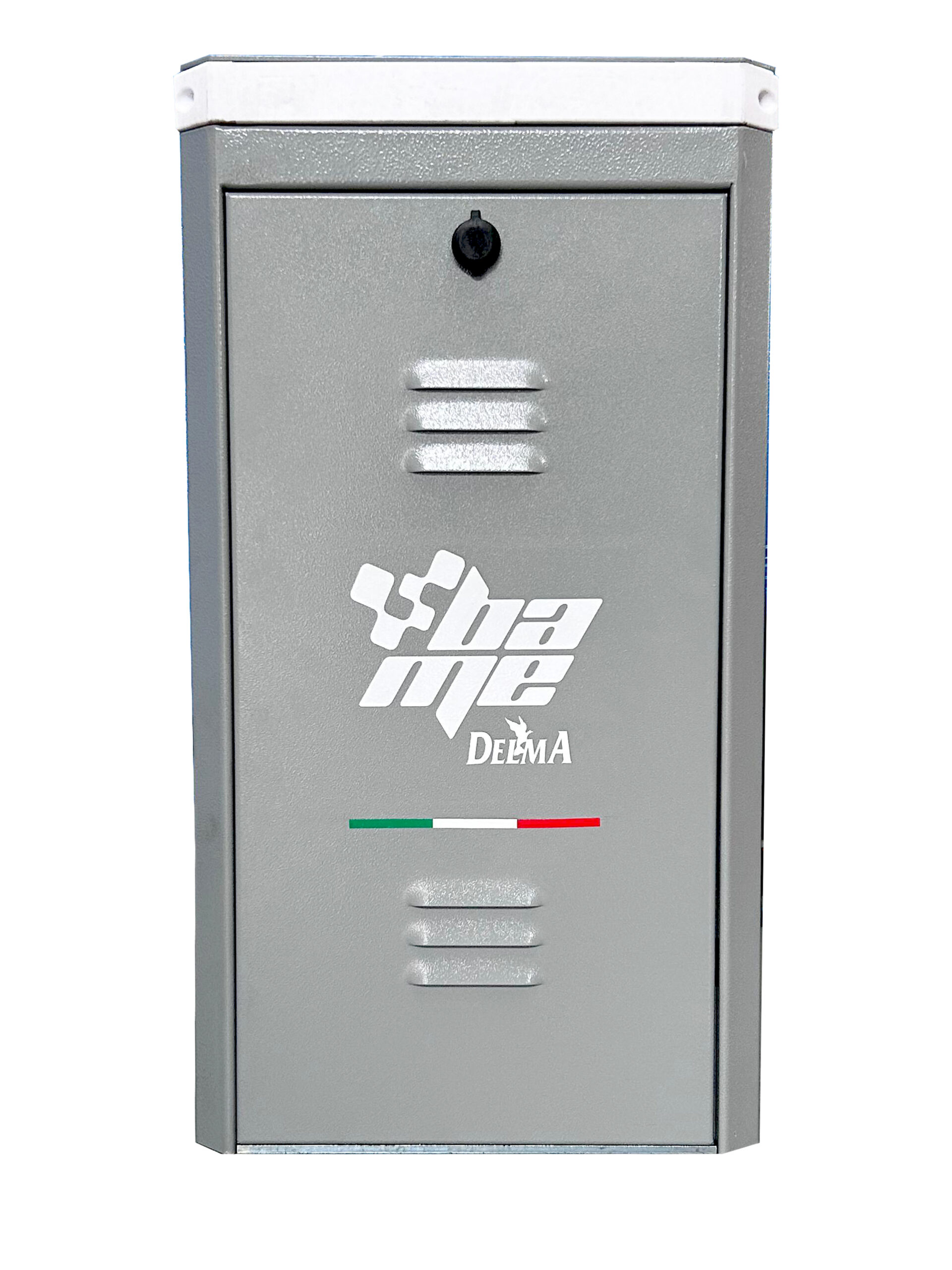

400V GEAR MOTOR WITH CONTROL UNIT FOR INTENSIVE USE AND MECHANICAL LIMIT SWITCHES
Electromechanical gear motor composed of a solid die-cast aluminum block, containing an electric motor and transmission system, powder-coated with epoxy paint at 180° for weather resistance, and a durable ABS cover without sharp edges. The worm gear is made of steel, while the crown gear is made of spheroidal cast iron. The emergency release is activated with a hex key contained in the lockable flap.
| Power supply | 230 – 400Y Vac |
| MOTOR POWER SUPPLY | 230 – 400Y Vac |
| Max. absorbed power | 750 W |
| Max. absorbed current | 2,5 A |
| NOISE LEVEL | < 30 DBA |
| Use frequency | intensive use |
| Gate speed | 9,0 mt/min |
| Max gate weight | 4000 Kg |
| Lubrication | OIL |
| Operator weight | 40 Kg |
| IP grade | IP55 |
