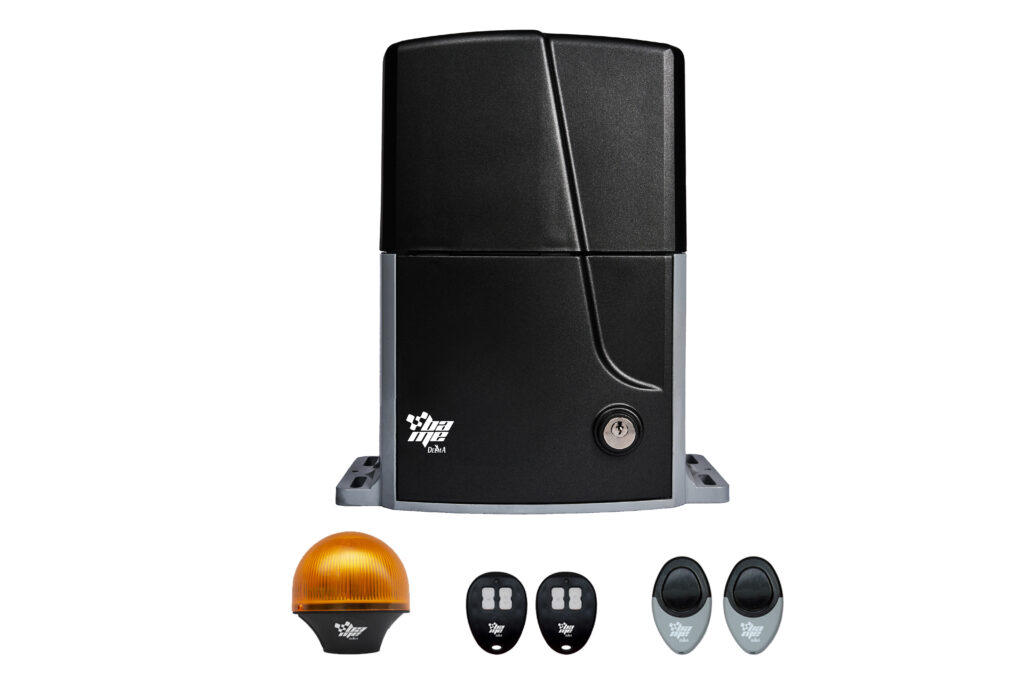

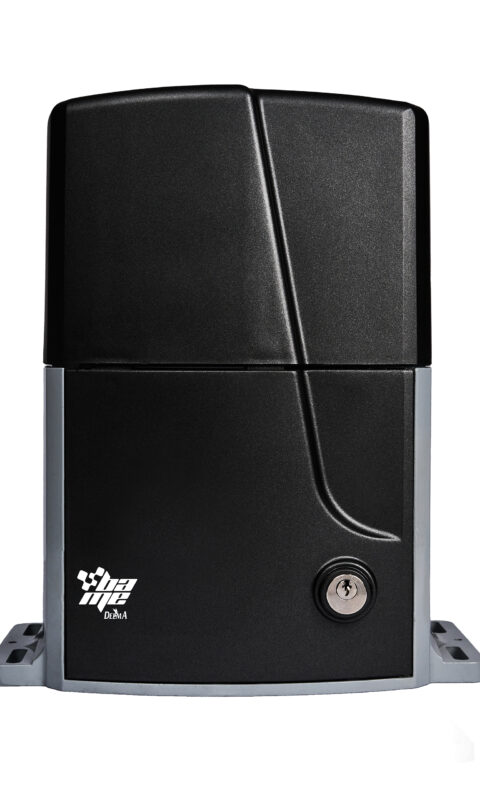

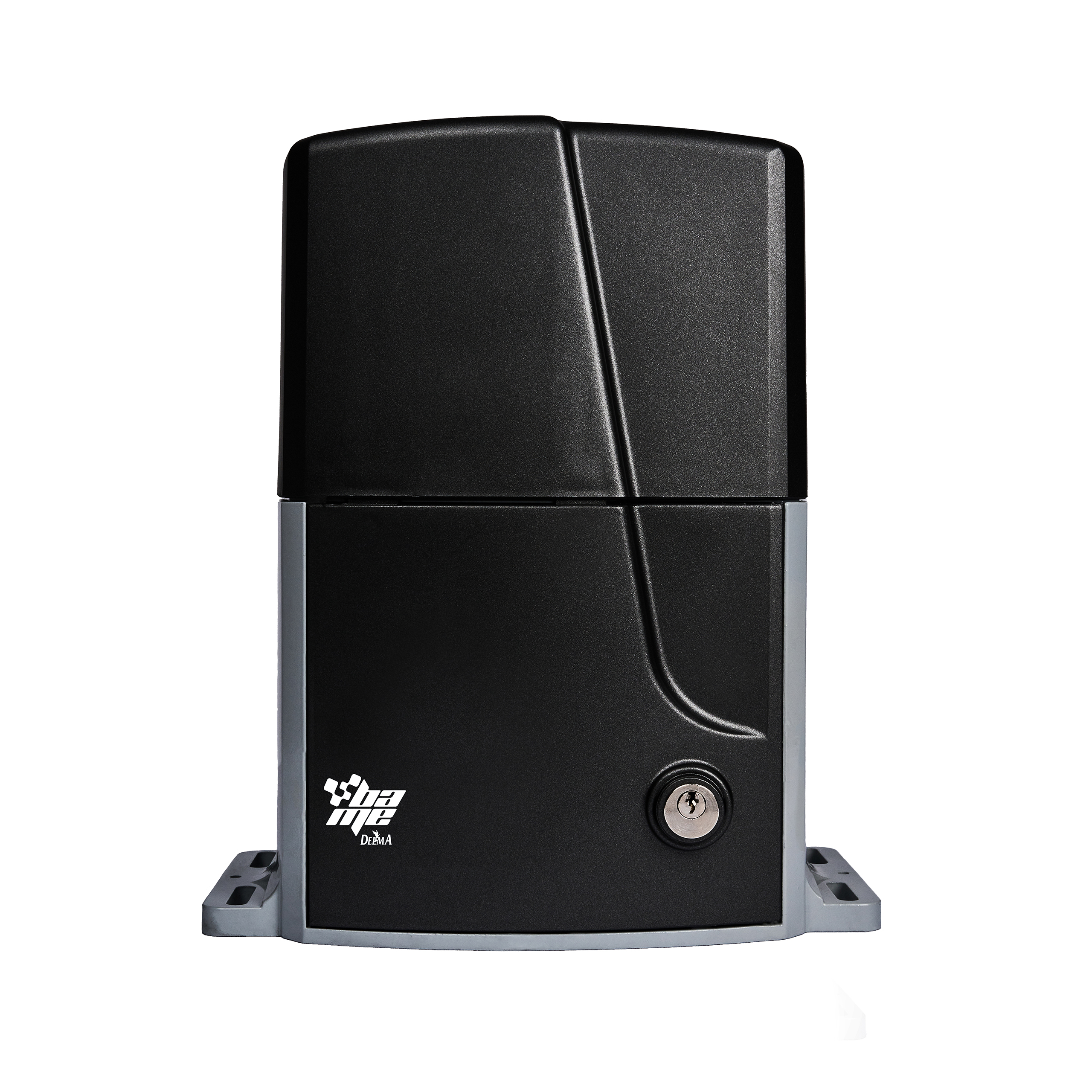

230V GEAR MOTOR WITH CONTROL UNIT FOR INDUSTRIAL USE AND MECHANICAL LIMIT SWITCHES
Electromechanical operators for intensive/industrial use for large sliding gates. Composed of a die-cast aluminum block, painted with epoxy powder at 180°, containing an electric motor (single-phase and three-phase) and a gearbox. They operate in an oil bath that ensures high performance and total maintenance-free operation. Transmission shaft and worm gear made of steel. Crown gear made of spheroidal cast iron. The mechanical clutch ensures high anti-crushing safety. Emergency release operated by a key. ABS cover.
| MOTOR POWER SUPPLY | 230 V 50-60 HZ |
| Max. absorbed power | 630 W |
| Max. absorbed current | 2,4 A |
| Rated torque | 1500 N |
| Use frequency | 60“ On 90“ Off |
| Gate speed | 9,6 mt/min |
| Max gate weight | 2500 Kg |
| Lubrication | OIL |
| Operator weight | 17 Kg |
| IP grade | IP55 |
