230V \ 380V GEAR MOTOR WITH CONTROL UNIT FOR INDUSTRIAL USE AND MECHANICAL LIMIT SWITCHES

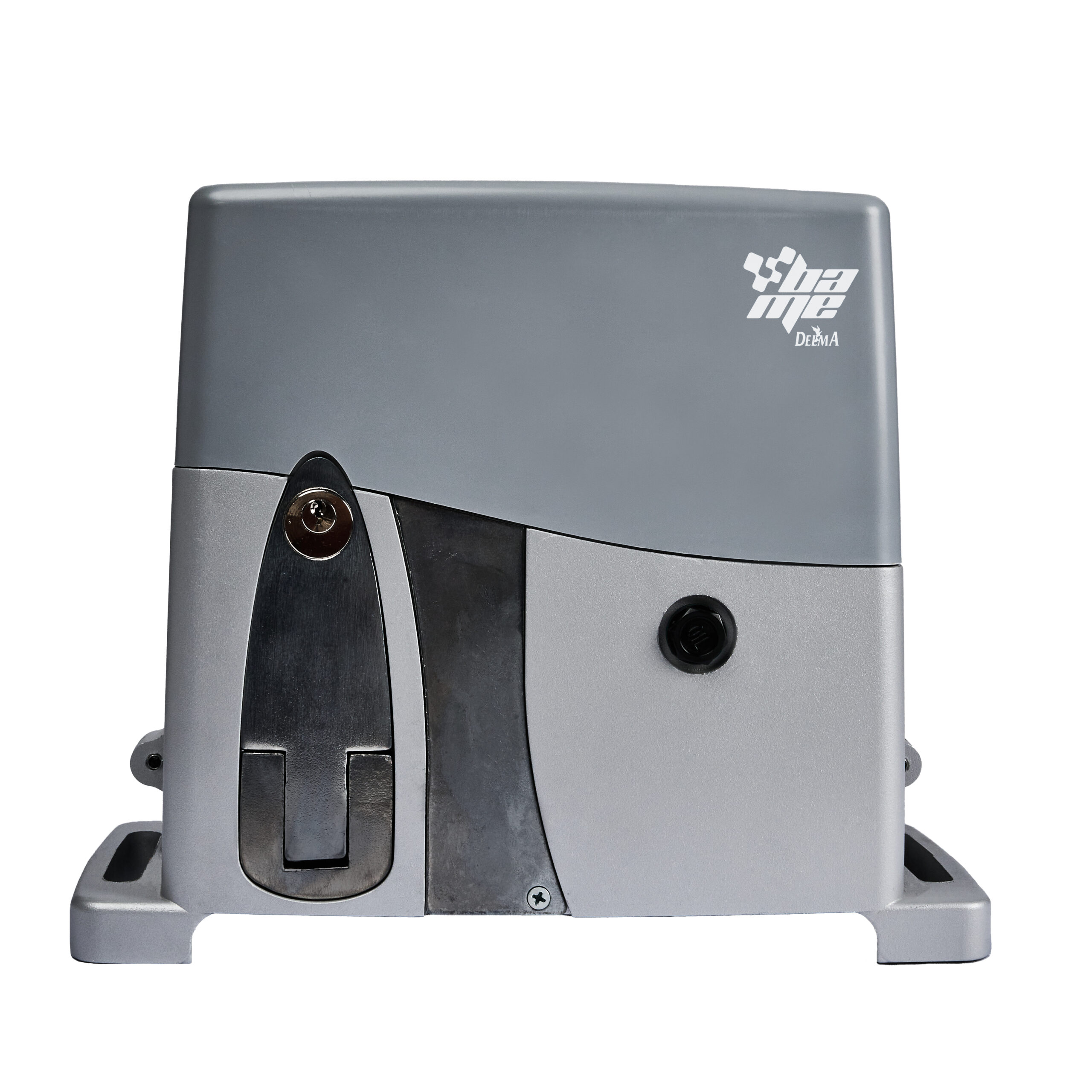

Electromechanical gear motor composed of a solid die-cast aluminum block, containing an electric motor and transmission system, powder-coated with epoxy paint at 180° for weather resistance, and a durable ABS cover without sharp edges. The worm gear is made of steel, while the crown gear is made of spheroidal cast iron. The emergency release is activated with a hex key contained in the lockable flap.

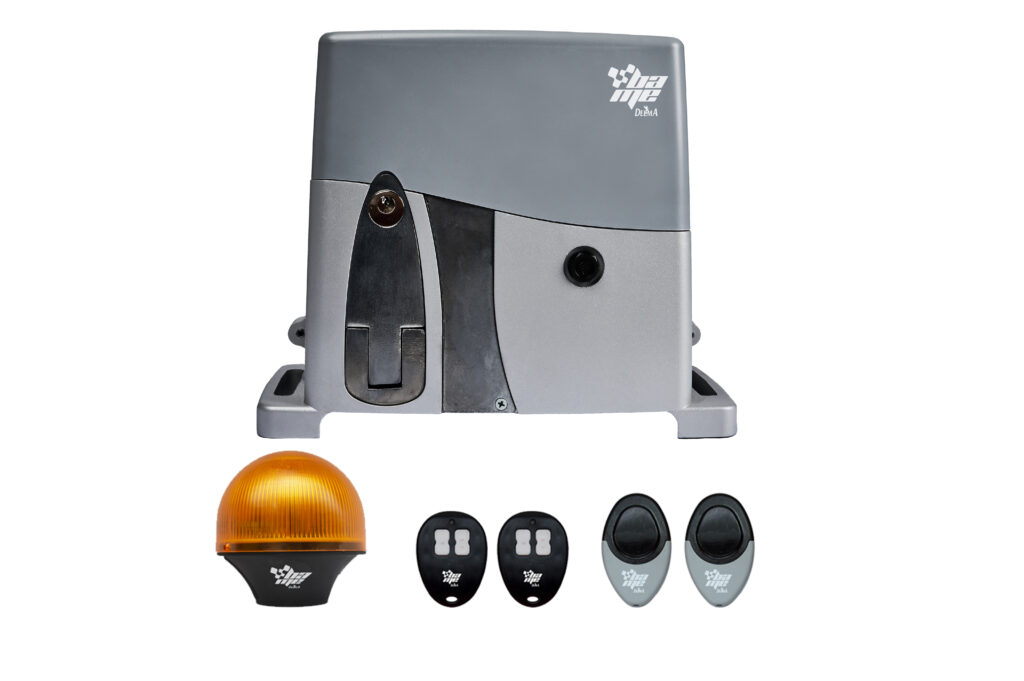

ROY 16 – 230V |

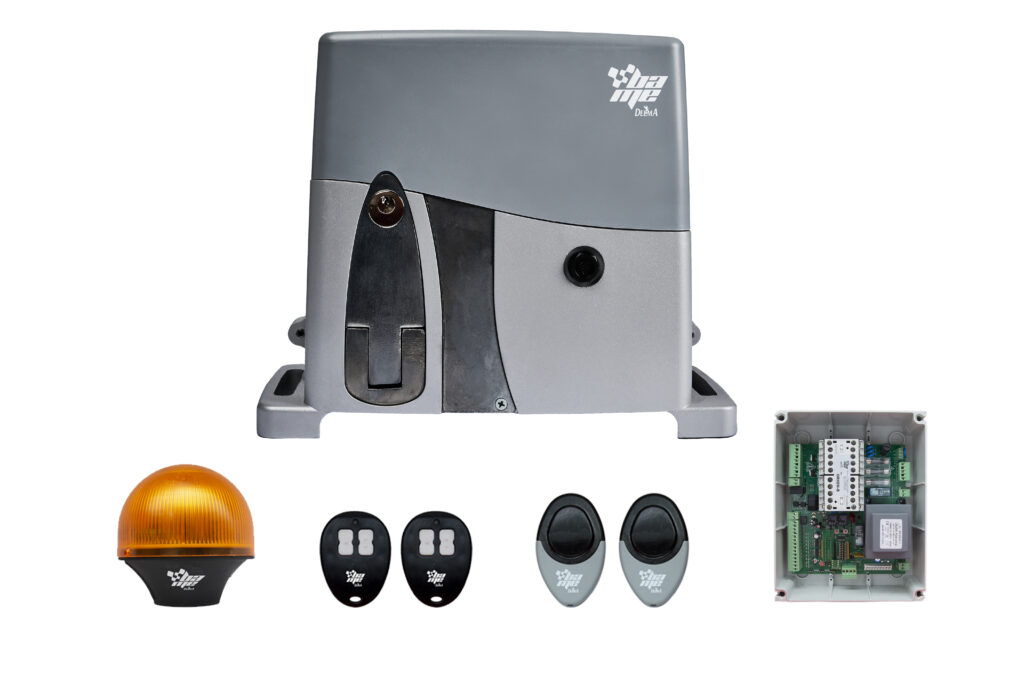

ROY 16 – 380V |
| MOTOR POWER SUPPLY | 230 V 50-60 HZ | 380 V 50-60 HZ |
| Max. absorbed power | 300 W | 450 W |
| Max. absorbed current | 1,3 A | 1,1 A |
| Rated torque | 15 Nm | 15 Nm |
| Use frequency | 60“ On 90“ Off | 90“ On 60“ Off |
| Gate speed | 10 mt/min. | 10 mt/min. |
| Max gate weight | 1600 Kg | 1600 Kg |
| Lubrication | oil | oil |
| Operator weight | 13 Kg | 13 Kg |
| IP grade | IP55 | IP55 |
