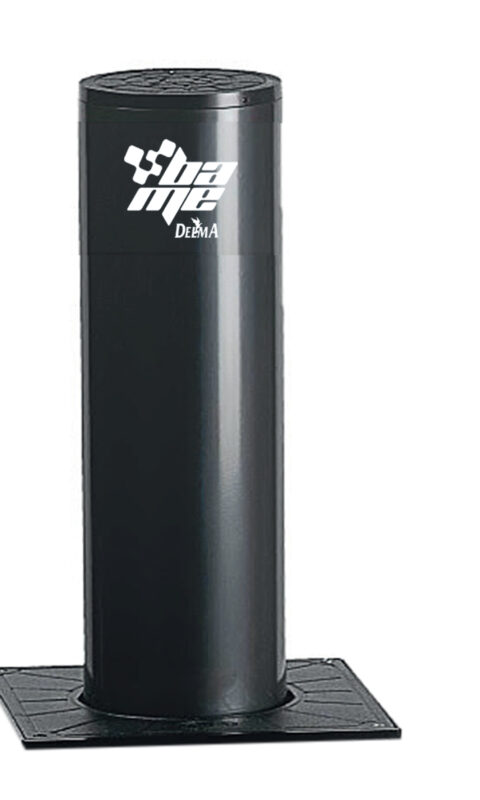

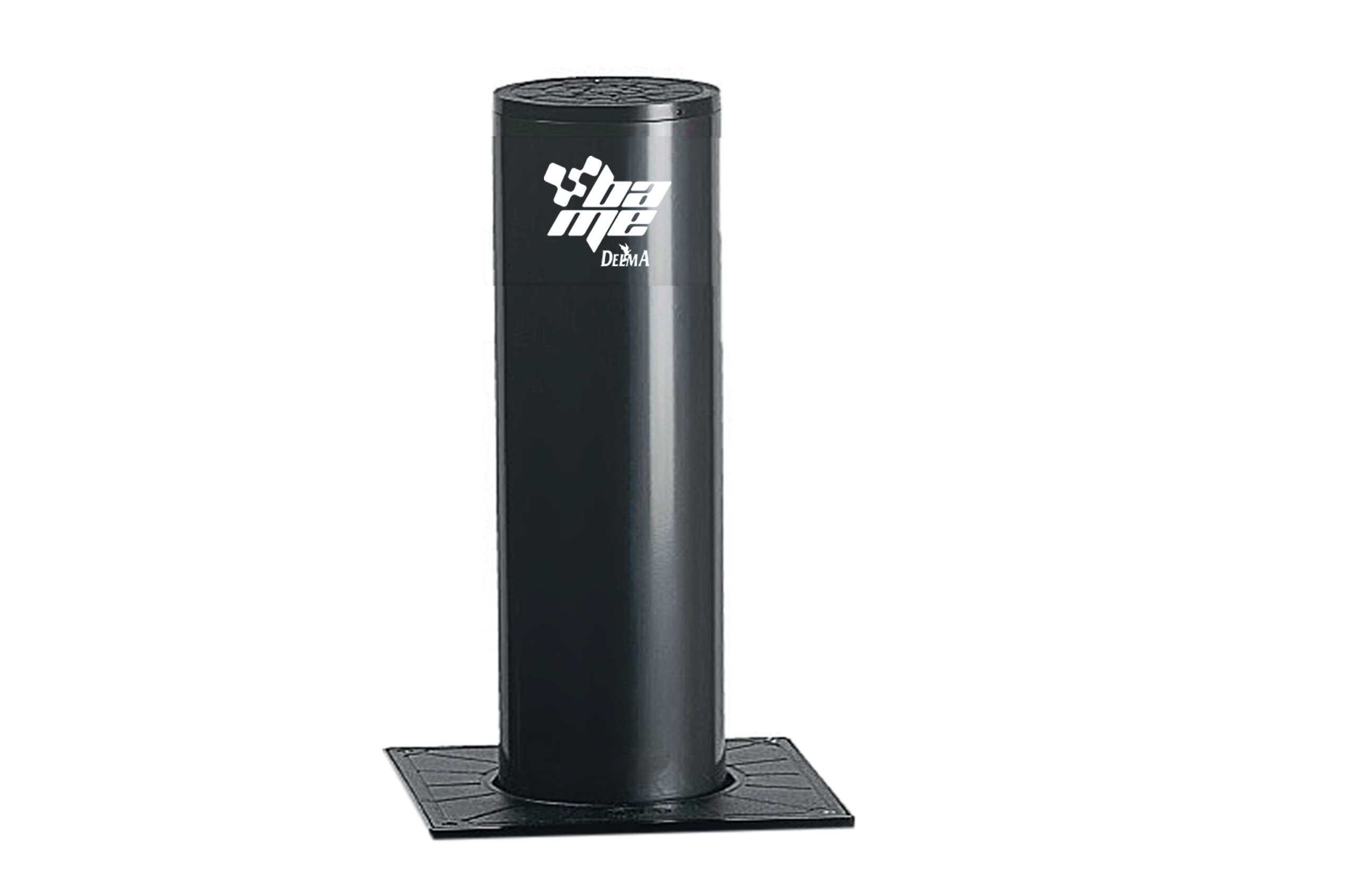

AUTOMATIC ELECTROMECHANICAL BOLLARD Designed for private use (parking space saver, access to private homes, garages, etc.) and for collective use (condominiums, hotels, private companies ...)
AUTOMATIC ELECTROMECHANICAL BOLLARD
Designed for private use (parking space saver, access to private homes, garages, etc.) and for collective use (condominiums, hotels, private companies …)
AUTOMATIC ELECTROMECHANICAL BOLLARD
Designed for private use (parking space saver, access to private homes, garages, etc.) and for collective use (condominiums, hotels, private companies …)
| PHANTOM 115 – 500 | PHANTOM 200 – 700 | |
| Power supply | 230V – 50/60 HZ | 230V – 50/60 HZ |
| Dimension | Ø115 x h.480 mm | Ø194 x700 mm |
| Thickness | 4,0 mm steel | 6,0 mm steel |
| Break-in resistance | 60 000 J | 110 000 J |
| Work time | 6,0 sec | 9,0 sec |
| Frequency | 21 cycles \ hour | 21 cycles \ hour |
| Emergency lock | It lowers manually with power cut-of | It lowers manually with power cut-of |
| Flange / Hat | Cast iron, cataphoresis black | Cast iron, cataphoresis black |
| Structure to be buried [LxPxH] | 250x300x965 mm | 360 x 360 x h1180 mm |
| LED lights | Not available | LED on cap |
| IP grade | IP67 | IP67 |
| Weight | 60,0 Kg | 113,0 Kg |
Download data sheets: access to the private area
