ELECTROMECHANICAL GEAR MOTOR IRREVERSIBLE 230V / 24V FOR INTENSIVE USES

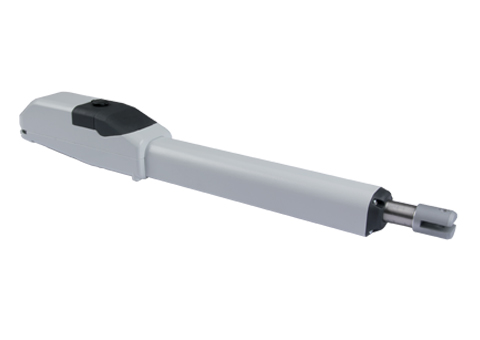

The KUDU operator is composed of two cast aluminium bodies coated in epoxy powder, containing the electric motor, the first worm gear reduction, the release system and the conical gears made of sintered steel.
The unlocking system is located on the operator top, protected by a removable plastic cap secured in place with a key lock.
In the front cover are housed the capacitor and the limit switches electrical wiring if the operator is fitted with electrical limit switches.
The Kudu has the same fitting quotes and the same fixing plates of PUMA and PUMA PLUS, this allows an easy and quick replacement.
The operator comes in only one version without the use of left and right models simplifying greatly the installation.
| KUDU-S 230V | KUDU-S 24V | |
| Power Supply | 230V – 50/60 HZ | 230V – 50/60 HZ |
| Motor power supply | 230V – 50/60 HZ | 24VDC |
| Absorbed power | 350W | 60W |
| Absorbed current | 1,5 A | 2,5 A |
| Stroke | 400mm | 400mm |
| Operating temperature | -20°C / +55°C | -20°C / +55°C |
| Max leaf lenght | 3,5 MT | 3,5 MT |
| Max leaf weight | 300 kg | 300 kg |
| Max Thrust | 280 N | 250 N |
| Lubrification | RESIDENTIAL | INTENSIVE |
| Usage | 8,5 Kg | 8,5 Kg |
Download data sheets: access to the private area
