Electromechanical reducer suited for residential use in swing gates with big supporting columns. Available with 230 V and 24 V
ELECTROMECHANICAL GEAR MOTOR IRREVERSIBLE 230V / 24V FOR INTENSIVE USES

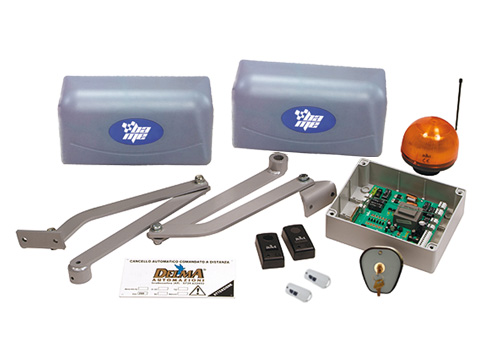

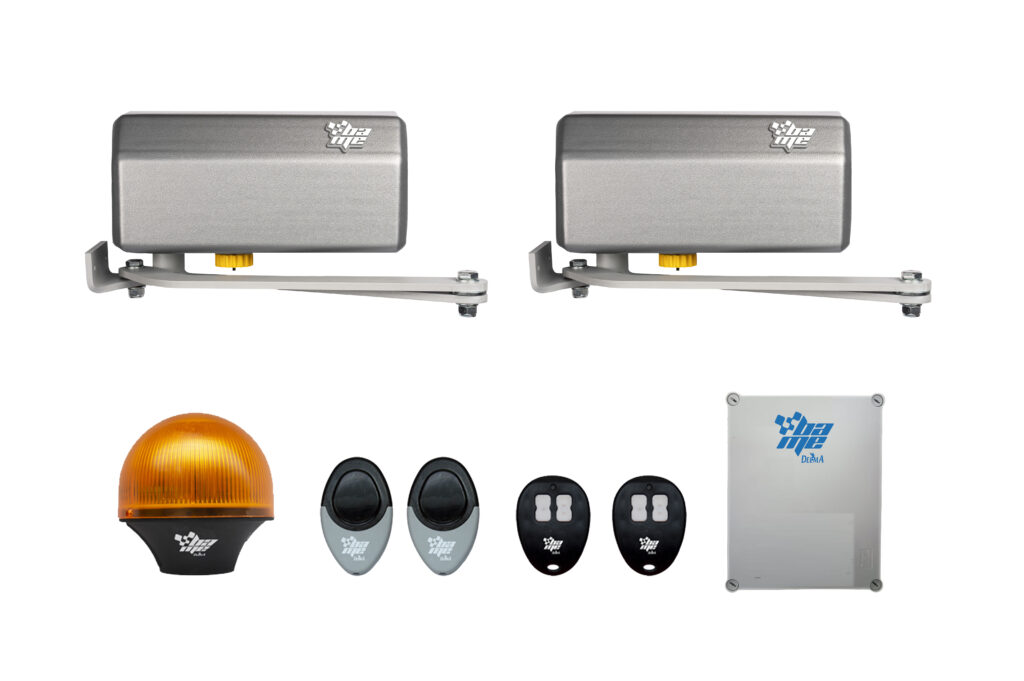

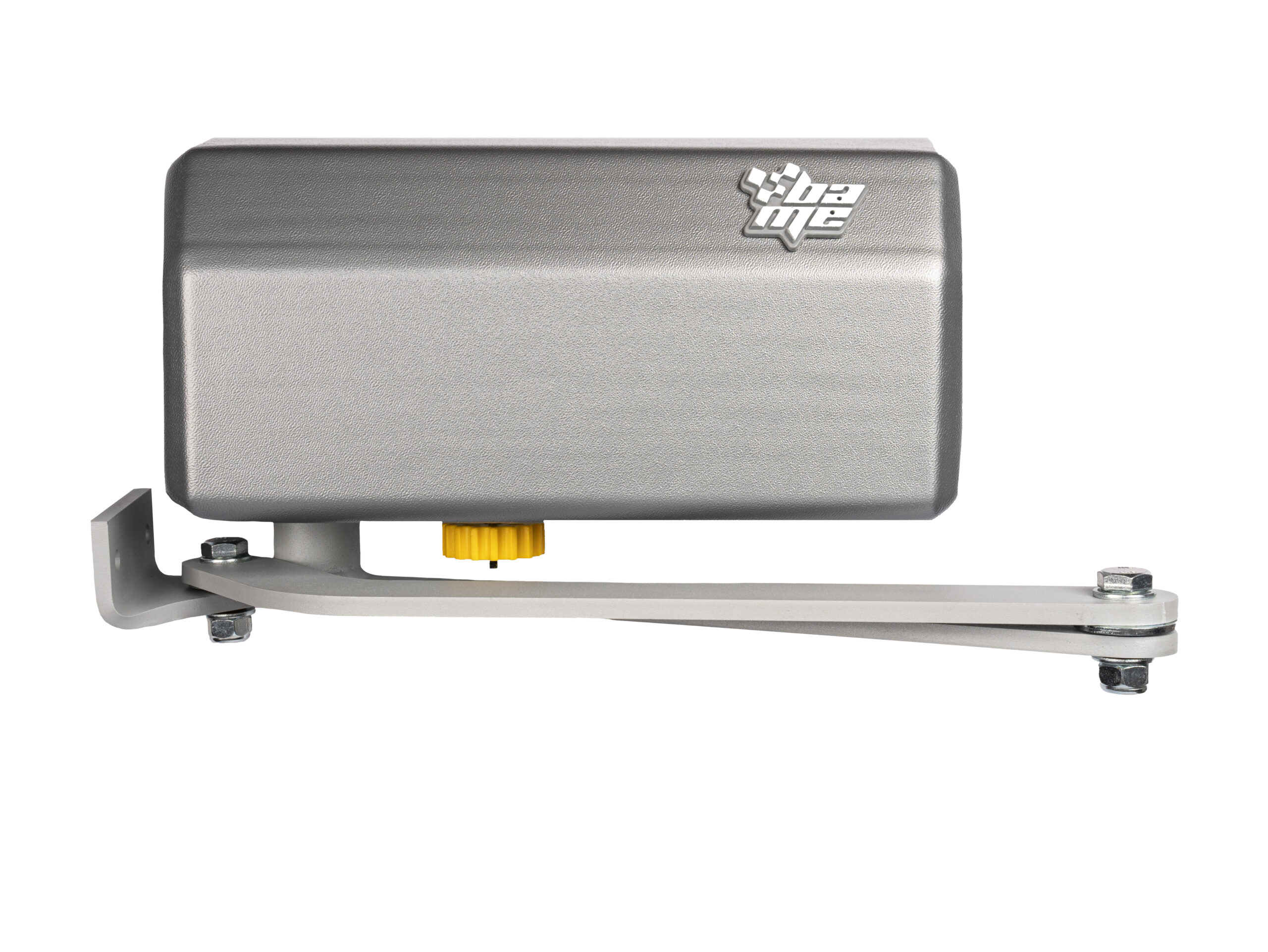

Electromechanical reducer suited for residential use in swing gates with big supporting columns. The universal articulated arm can be adapted for left or right assembly. The irreversible reducer is housed in a die-cast aluminium body and can be used without an electric lock. All the system is enclosed by a very thick plastic cover. The operator can be equipped with an external keylock with the emergency release.
CODE R65072 KOMPASS 230V
CODE R65029 KOMPASS 12V
N 18 Pcs PER PALLET
| KOMPASS 230V | KOMPASS 24V | |
| Power supply | 230V 50-60Hz | 230V 50-60Hz |
| Motor Power Supply | 230V 50-60Hz | 24 VDC |
| Absorbed power | 250W | 90W |
| Absorbed current | 1,15A | 2,5A |
| Torque | 350 N | 250 N |
| Lubrification | Grease | Grease |
| Max swing lenght | 3,5 mt | 2,5 mt |
| Max swing weight | 300 kg | 250 kg |
| Working temperature | -20 / +55 °C | -20 / +55 °C |
| Operator’s weight | 11,5 kg | 10,5 kg |
| Usage | RESIDENTIAL | INTENSIVE |
