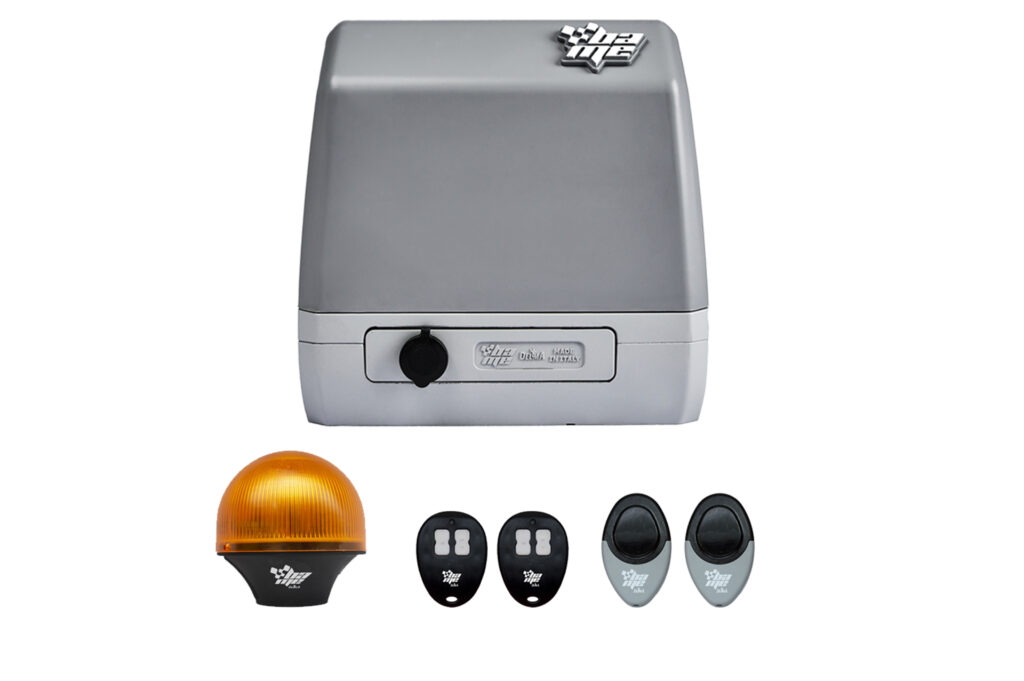

GEAR MOTOR 230V WITH CONTROL UNIT FOR RESIDENTIAL USE AND MAGNETIC LIMIT SWITCHES

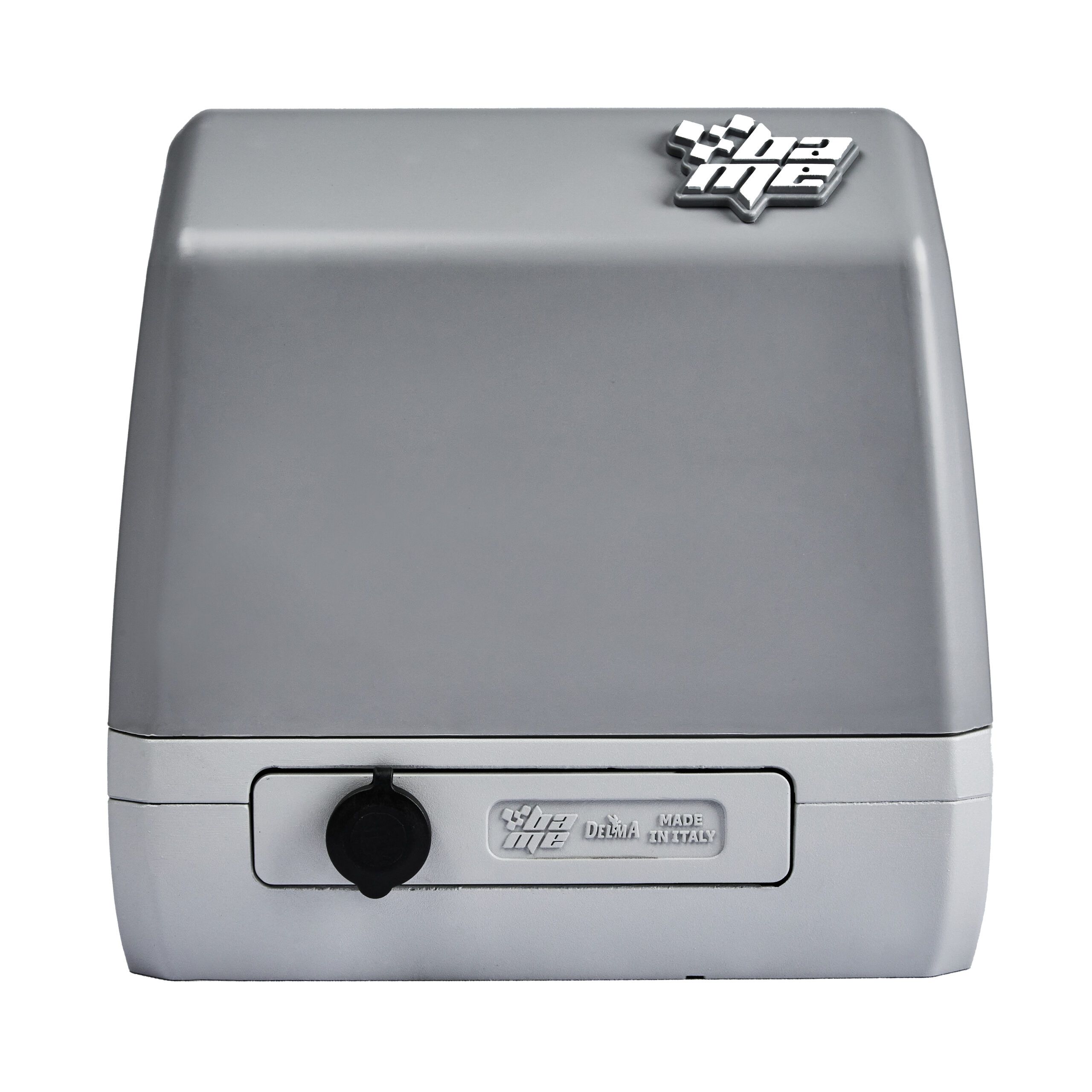

The sliding gate gear motor series FURY combines the great reliability typical of BAME products with a new pleasant and functional design. The base of the gear motor is made of die-cast aluminum, powder-coated to withstand the test of time. The internal mechanics of steel and cast iron, along with powerful and quiet electric motors, ensure long-lasting mechanism durability and secure gate locking. The electronic control unit, simple to program and made with high-quality components, is housed inside a special plastic box that protects it from moisture and insects. The limit switch can be either magnetic (with sensors integrated into the electronic board in the 230 Volt version) or electromechanical with micro switches and a spring protected inside the ABS cover. The emergency release is activated simply by pulling the special lever located in front of the motor body and protected by a key lock.
| MOTOR POWER SUPPLY | 24 vCc |
| Max. absorbed power | 90 W |
| Max. absorbed current | 2,5 A |
| Rated torque | 5,5 Nm |
| Use frequency | 90“ On 60“ Off |
| Gate speed | 14 mt/min. |
| Max gate weight | 500 Kg |
| Lubrication | grease |
| Operator weight | 9 Kg |
| IP grade | IP55 |
Download data sheets: access to the private area
